StarTech USB DisplayPort 4-Port KVM Switch (D86A2-4-PORT-8K-KVM)
Item #:
901-24597704
Model #:
D86A24PORT8KKVM
Brand:
StarTech
Not yet rated. Be the first to
Write a review!
$511.99
Per each
Upgrade to get 5% off, earn points 10% faster and more.
StarTech USB DisplayPort 4-Port KVM Switch (D86A2-4-PORT-8K-KVM)
Limited quantity available: 16 remaining
Description
Share and switch between four USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices. This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity. This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
- Quad-port KVM switch to share a mouse, keyboard, USB 5Gbps hub, and 8K 60Hz DisplayPort monitor between four DisplayPort-enabled computers
- Console interfaces: 1 x DisplayPort, 2 x USB Type-A (9-pin, 5Gbps), 4 x USB 2.0 Type-A (4-pin, 480Mbps), 1 x 3.5mm stereo ports, 1 x barrel power connector (size M, OD:5.50, ID: 2.10)
- Host connectors: 4 x DisplayPort, 4 x USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps), 4 x 3.5mm stereo ports (female, three-position)
- Dimensions: 1.7"H x 5.1"W x 8.7"D; weight is 2.3 lbs.
- Fast switch between four USB-A and DisplayPort-enabled desktops to share a keyboard, mouse, audio device, and a single 8K 60Hz DisplayPort monitor
- DSC support required for maximum video performance; Supports MST Pass-through
- TAA-Compliant KVM Switch works with any operating system including Windows, macOS, ChromeOS, and Linux
- Compatible with all hardware platforms such as Intel and AMD
- Supports ultrawide resolutions up to 5120x1440 60Hz
- Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation
- LEDs provide quick visual port selection status; listen to audio from one computer, while controlling the other
- Metal housing is durable and helps prevent electro-magnetic interference (EMI)
- Overcurrent protection (OCP) prevents peripherals from overdrawing power, reducing the risk of damage to the KVM and attached USB devices
- KVM switch is DisplayPort 1.4 compliant, supporting resolutions up to 8K 60Hz or 4K 144Hz, HDR10, HDCP 2.2/1.4, and DSC; supports DisplayPort audio and 3.5mm analog audio

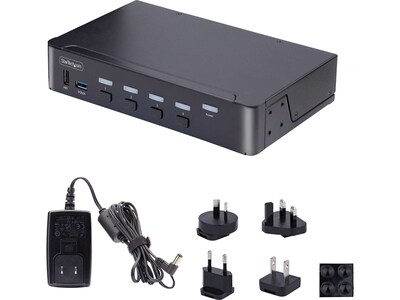

- Box contains: KVM switch, universal power adapter (NA/JP, EU, UK, NZ), rubber feet, and quick-start guide
- 2-year manufacturer limited warranty
Specifications
# of Ports
4
Brand
StarTech
Connector, Port or Interface Type(s)
DisplayPort, USB Type-A (9 pin), USB 2.0 Type-A (4 pin), 3.5mm Stereo Female 3 pos, Barrel Power Connector, USB 3.2 USB Type-B (9 pin)
Connects Devices (To and From)
Desktops, Keyboard, Mouse, Audio Device, Monitor
DisplayPort
Yes (359916)
Included Components
universal power adapter (NA/JP, EU, UK, NZ), rubber feet, quick-start guide
Input Voltage
100 - 240V AC
IP Control
No (365918)
KVM Cable or Switch Type
KVM Switch (365922)
LED Indicators
4 - green: PC connected (power on), 4 - red: PC selected (power on)
Maximum Resolution
7680 x 4320 @60Hz
Number of Computers Supported
4
Number of Monitors
1
Port Selection
Push Button and Hotkeys
Power Consumption (Watts)
36
Power Source
Ac Powered
Rack-Mountable
Not Rack-Mountable (365926)
USB
Yes (359919)
Warranty Information
2 Year (68502)
