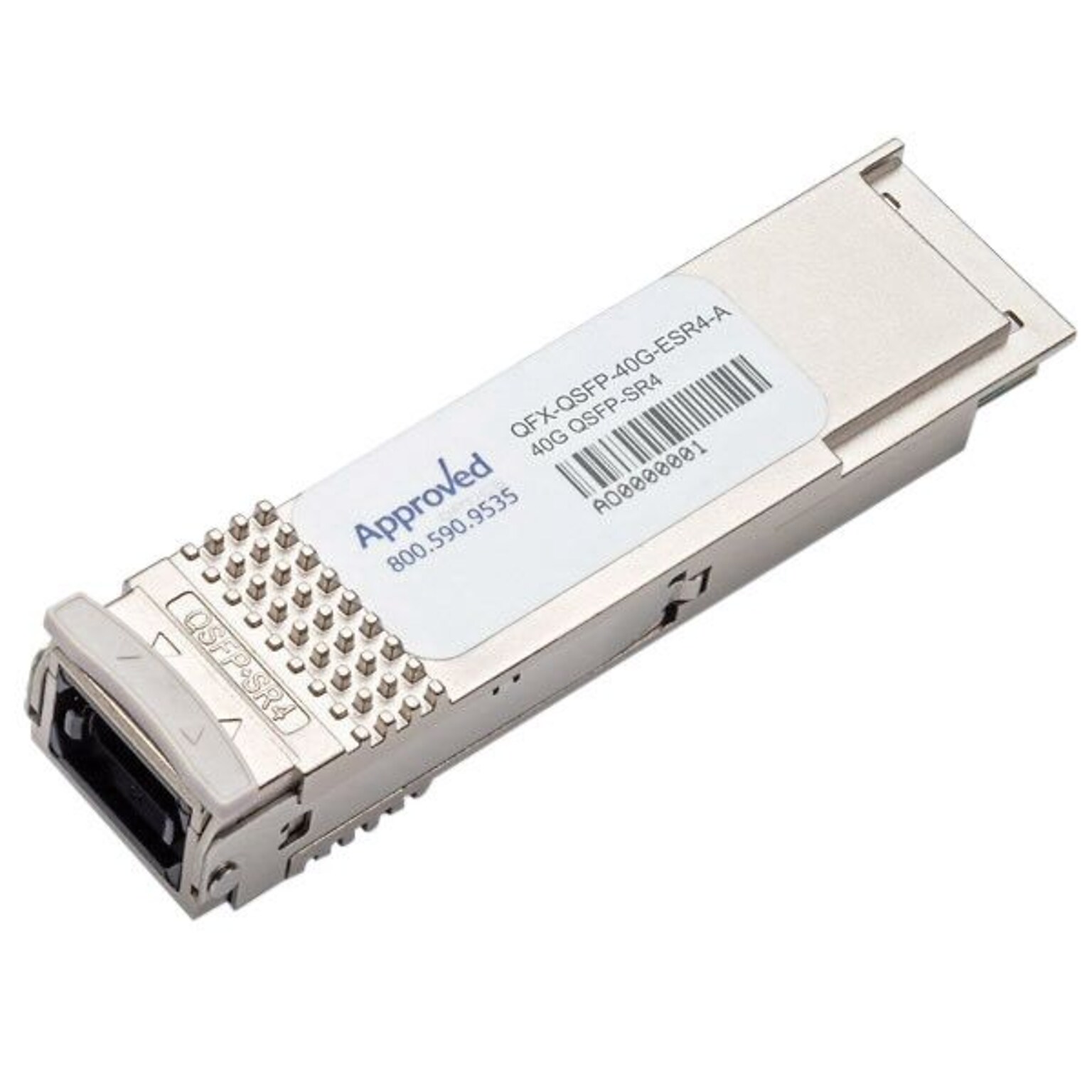

Juniper® QFX-QSFP-40G-ESR4 40 Gbps QSFP+ Transceiver Module for QFX Series QFX5100 Switch
Item #:
901-IM1QY7303
Model #:
QFX-QSFP-40G-ES
Brand:
Juniper
Not yet rated. Be the first to
Write a review!
Out of stock
$7,500.00
Per each
Upgrade to get 5% off, earn points 10% faster and more. Annual fee of $99.99.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description
40 Gbps transceiver module features multi mode optical interface with 2 - 400 m maximum transfer distance.
The Juniper® QFX-QSFP-40G-ESR4 QSFP+ transceiver module is suitable for use with QFX series QFX5100, QFX3500, QFX3600, QFX5100-24Q, QFX5100-48S and QFX5100-48T switch. This plug-in module measuring 0.33" x 0.72" x 2.4", has one MPO/PC interface for ensuring reliable connectivity. It transmits data at the rate of 40 Gbps through multi-mode fiber media.
- Transceiver module enables maximum data transfer distance
- Dimensions: 0.33"H x 0.72"W x 2.4"D
- Compatible with QFX Series QFX5100, QFX3500, QFX3600, QFX5100-24Q, QFX5100-48S, QFX5100-48T switch
- Interfaces/ports: One MPO/PC
- Data transfer rate: 40 Gbps
- Transmitter power: -7.3 through -1.3 dBm
- Receive power: -9.9 dBm through -1.0 dBm
- Receiver sensitivity: -11.1 dBm and -7.5 dBm (stressed)
- Wavelength: 840 - 860 nm
- Cable: Multi mode fiber (type), 2 - 400 m (maximum distance), 50/125 mu m (cladding )
- Signaling rate: 9.95328 GBd +/- 20 ppm, 10.3125 GBd +/- 100 ppm
- Data link protocol: 40 Gigabit Ethernet
- Form factor: Plug-in module, Slot: QSFP+
- Temperature: 32 to 158 deg F
- Meets CE, FCC certifications and standards
Specifications
Brand
Juniper
Compatibility
QFX Series QFX5100, QFX3500, QFX3600, QFX5100-24Q, QFX5100-48S Switch
Connector, Port or Interface Type(s)
One MPO/PC
Data Transfer Rate
40 Gbps
Data Transfer Rate (Gbps)
40
Data Transfer Rate (Mbps)
40000
Depth in Inches
2.4
Ethernet
Yes
Gigabit
Yes
Height in Inches
0.33
Max. Data Transfer Rate (Mbps)
More than 3000
Max. Distance (Meters)
400
Network Transceiver Type
QSFP+
Operating Temperature (Celsius)
0 to 70
Operating Temperature (Fahrenheit)
32 to 158
Protocols
Data link protocol: 40 Gigabit Ethernet
Selling Quantity (UOM)
Each
Wavelength (Nm)
860
Width in Inches
0.72
