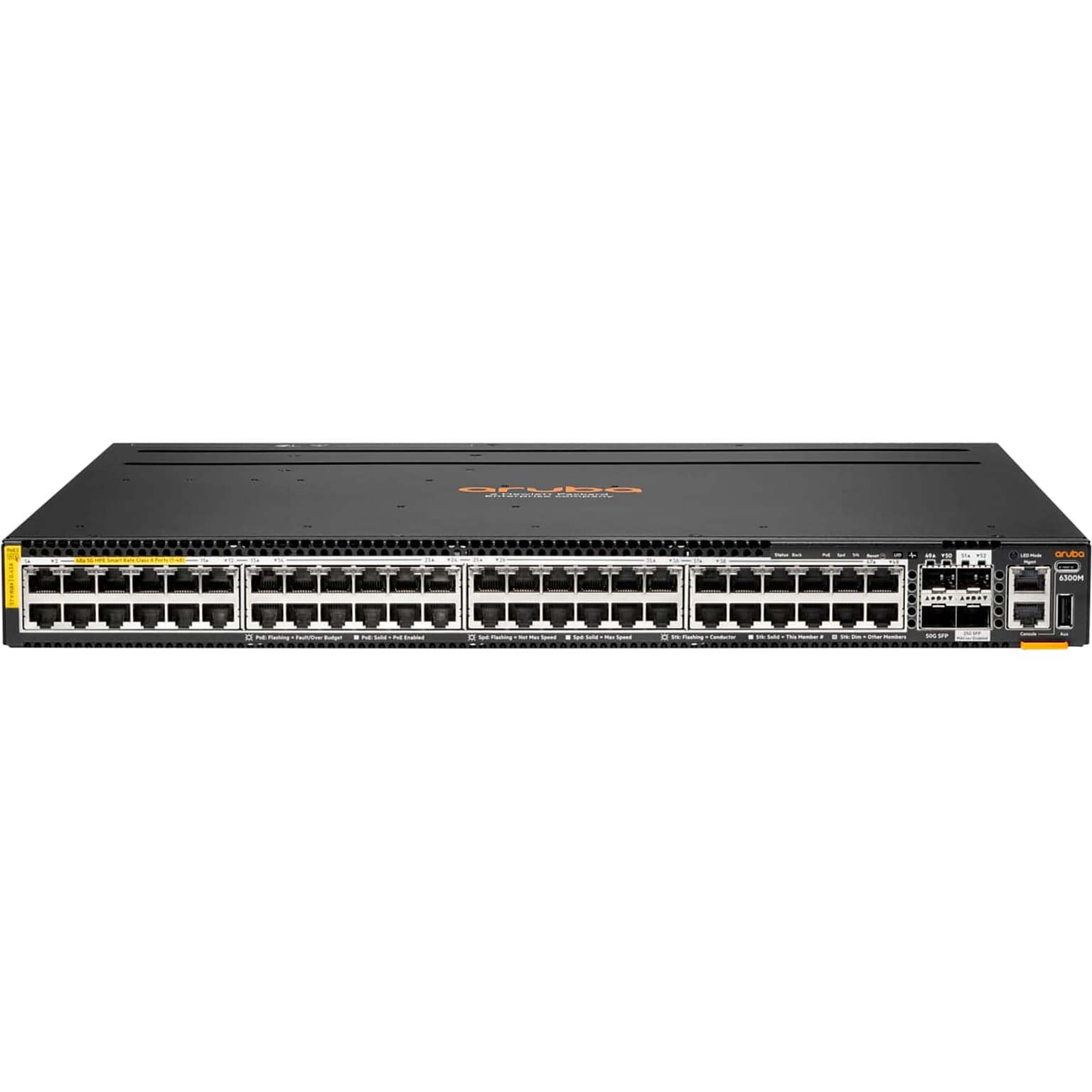

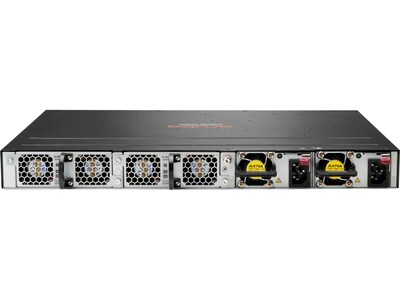

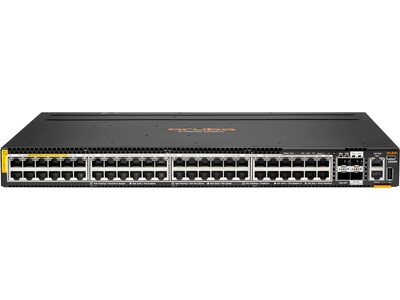

Aruba CX 6300 48-Port Smart Switch, 880Gbps, Black (R8S90A)
Item #:
901-IM106PW98
Model #:
R8S90A
Brand:
Aruba
Not yet rated. Be the first to
Write a review!
New
$21,529.00
Per each
Upgrade to get 5% off, earn points 10% faster and more. Annual fee of $99.99.
Aruba CX 6300 48-Port Smart Switch, 880Gbps, Black (R8S90A)
Description
The Aruba CX 6300 switch series is a modern, flexible, and intelligent family of AOS-CX stackable switches perfect for access, aggregation, and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow's unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in highspeed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multigigabit Ethernet for high speed APs and IoT devices.
- This smart switch contains 48x ports SmartRate 100M/1G/2.5G/5G BaseT, 2x 10G/25G/50G SFP ports, 2x 1G/10G/25G SFP ports (MACSEC)
- Supports up to 90W PoE per port for a total of 2880W of PoE
- Provides high-performance 880 Gbps system switching capacity, 660 Mpps of system throughput and up to 200Gbps stacking bandwidth
- Stackable for convenient use
- Features SNMP v2c/v3
- Supports Layer 3 capabilities with BGP, EVPN, VXLAN, VRF, OSPF with robust security and QoS, MACsec 256, PTP, AVB, LRM
- Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT
- Four built-in QSFP28 ports support speeds of 1GbE, 10GbE, 25GbE, and 50GbE (50GbE for DAC connectivity only) for a total of up to 200 Gbps of stacking throughput per switch
- Built-in high-speed 10GbE/25GbE/50GbE uplinks (50GbE for DAC connectivity only) with intelligent monitoring and visibility via Aruba Network Analytics Engine
- Manage via single pane of glass with Aruba Central across wired, wireless, and WAN networks
- Automatically interrogates and analyzes events that can impact network health
- Advanced telemetry and automation provide the ability to easily identify data sheet and troubleshoot network, system, application, and security-related issues easily
- Delivers a very low latency, increased packet buffering, and adaptive power consumption
Specifications
Brand
Aruba
Buffer Memory
8MB
Data Transfer Rate
880Gbps
Data Transfer Rate (Gbps)
880
Depth in Inches
15.2
Ethernet Number of Ports
31 to 50
Gaming
Non Gaming
Height in Inches
1.73
LACP
No
Layer
3
Max. Data Transfer Rate (Mbps)
More than 3000
Module Support
SFP, SFP+
Network Management Type
Smart Switch
Number of Ethernet Ports
48
Performance Class
Multi-Gigabit
Power Over Ethernet
Yes
Quality of Service
Yes
Series or Collection
CX 6300
SNMP
v2c
Stackable
Stackable
Switch Form Factor
Rack Mountable
True Color
Black
VLAN Support
No
Weight (lbs.)
14.8
Width in Inches
17.4
