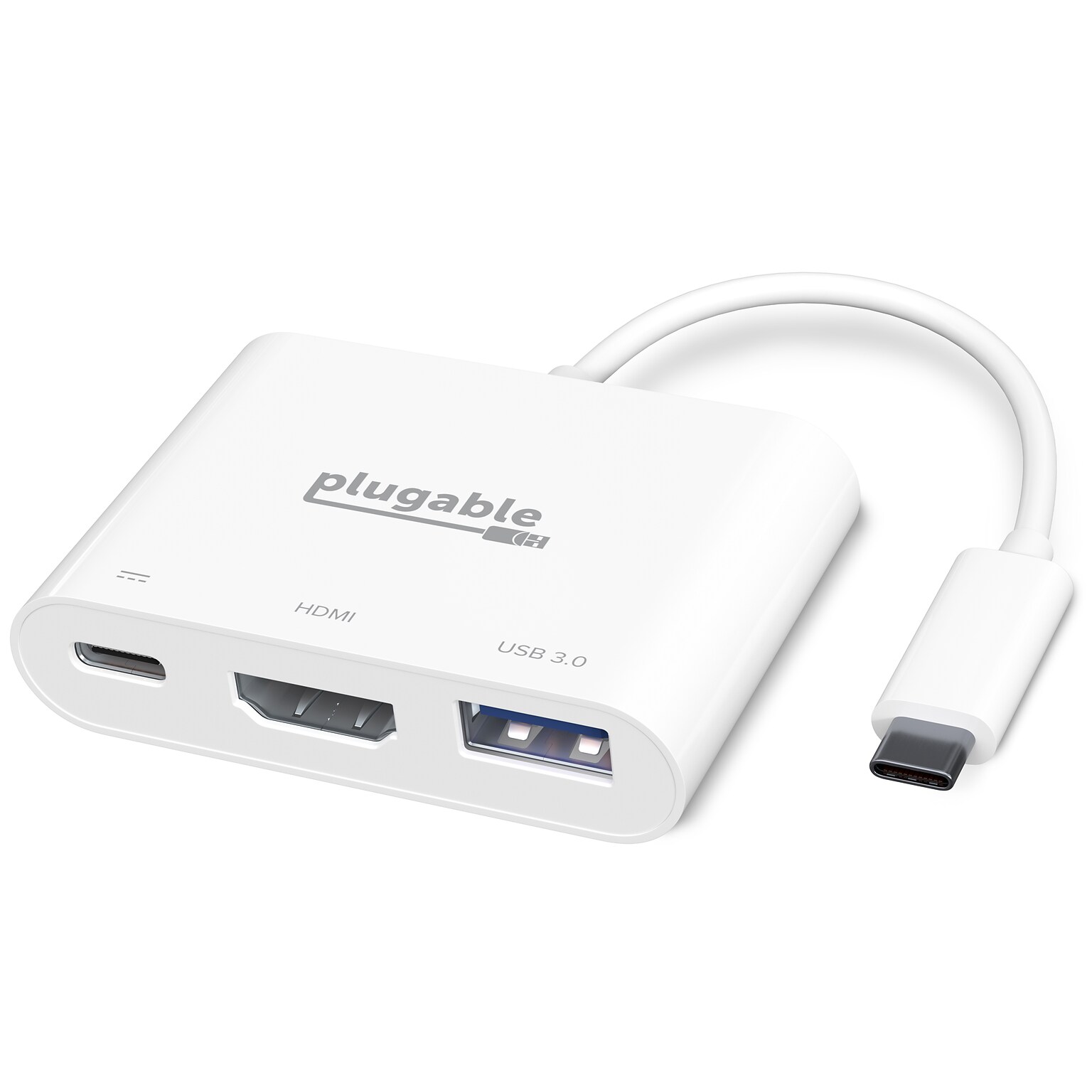

Plugable USB Type-C Mini Dock with HDMI, USB 3.0 and Pass-Through Charging
$53.99
Per each
Plugable USB Type-C Mini Dock with HDMI, USB 3.0 and Pass-Through Charging
Item #:
901-IM12KH719
Model #:
USBC-MD101
Brand:
Plugable
Not yet rated. Be the first to
Write a review!
$53.99
Per each
Upgrade to get 5% off, earn points 10% faster and more.
Description
Plugable's USB-C Mini Dock helps overcome the limited amount of USB-C ports on modern systems in order to provide a travel friendly docking solution for the functions that are most important to your workflow. Equipped with an HDMI 1.4 port, our Mini Dock can support an external monitor, TV or projector up to 3840a-2160 at a 30Hz refresh rate while supporting 1080p and lower resolutions at a 60Hz refresh rate. The USB 3.0 port offers 5Gbps data transfer speeds and enables you to connect traditional USB peripherals to the new USB-C ports that are equipped on modern laptops, tablets and desktops. Our Mini Dock is able to provide USB-C pass-through charging over the USB-C Power Delivery specification at 5-20v at 3A. Please note: when connecting or disconnecting a USB-C charger, the connection may momentarily reset as the hub changes its power source. This is expected behavior outlined in the USB-IF Power Delivery R2 V1.0 specification. Connected USB devices may momentarily disconnect until the transition is completed and they could automatically reconnect. There are no software drivers required for our mini dock to work; just plug-and-play! Compatibility: The Plugable USB-C Mini Dock is compatible with Windows, Mac and Linux systems that have a USB-C 3.1 Gen 1/ Gen 2 port that supports USB-C DisplayPort Alternate Mode and USB-C Power Delivery or Thunderbolt 3 ports. Popular supported systems include the 2016 / 2017 MacBook Pro 13" / 15" (with and without Touchbar), HP Spectre x360 13" (13-ac013dx), Lenovo Yoga 720 (13IKB), Dell XPS 13 and XPS 15 systems, and Microsoft Surface Book 2. Please note: a USB-C power supply is not included with our USBC-MD101 Mini Dock. If the host system does not come with a USB-C power adapter for charging, one that is compatible with the system would need to be purchased separately in order to use with our adapter for USB-C Power Delivery charging. Our mini dock is not compatible with USB Type-A systems using a USB Type-A to USB Type-C passive adapter as these do not support USB-C DisplayPort alternate mode or USB-C power delivery. Also, it is not compatible with most smartphone devices equipped with a USB-C port. Power Supply note: if the host system's power supply outputs a wattage greater than 60 watts (like Apple's 87 watt power supply or Dell's 130 watt power supply), the USB-C power delivery will negotiate, but will charge at 60 watts. This will result with the system's battery charging at slower rates when used with our mini dock.
- Connect an external monitor, USB device and USB-C power adapter to a USB-C or Thunderbolt 3 system using a single USB Type-C Alt Mode adapter
- HDMI 1.4 port support external monitor resolutions up to 3840a-2160@30Hz. 1440p, 1080p and lower resolutions supported at 60Hz
- Supports USB-C Power Delivery charging (5-20v @ 3A)
- Compatible with USB Type-C 3.1 Gen 1 / Gen 2 and Thunderbolt 3 host systems that support USB-C DisplayPort Alternate Mode and USB-C Power Delivery
- USB bus powered; No extra power supply required
- Compatible with Windows, Mac, Linux and ChromeOS systems that support USB-C DisplayPort Alternate Mode over USB-C or Thunderbolt 3 ports. Additional compatibility information below
Specifications
Brand
Plugable
Data Transfer Rate (Gbps)
5
Number of Ethernet Ports
1
Number of HDMI Ports
1
Number of USB Ports
1
